Introduction to Databases and Persistence
Application data that lives inside a container is ephemeral - it only persists for the lifetime of the container. We can use databases to extend the life of our application (or user) data, and even access it from outside the container.
After going through this module, students should be able to:
Explain the differences between SQL and NoSQL databases
Choose the appropriate type of database for a given application / data set
Start and find the correct port for a Redis server
Install and import the Redis Python library
Add data to and retrieve data from a Redis database from a Python script
Design Principles: Separating the database service from the application container is a great example illustrating the modularity design principle.
What Is Our Motivation?
In the previous units, we have been working with data that is stored in files on our local file system. This is a common way to store data, but it has some limitations:
The data may not persistent; if we stop the container, the data will be lost unless we mount the file(s) into the container.
It is not easy to query the data; we have to read the entire file into memory and then parse it to extract the information we need.
It is not easy to share the data between different processes or different computers; we would have to implement some sort of file sharing system, which can be complex and error-prone.
It is not easy to enforce data integrity; we would have to implement our own system for ensuring that the data is consistent and valid.
It is not easy to scale; as the size of the data grows, it becomes more difficult to manage and query the data efficiently.
Files are not designed for concurrent access; if multiple processes try to read from and write to the same file at the same time, race conditions can occur, leading to data corruption or loss.
Files do not support transactions; if a process is interrupted while writing to a file, it can leave the file in an inconsistent state.
Databases are designed to address these limitations. They provide a structured way to store and manage data and we will use them to store our data in a way that is persistent, queryable, shareable, and scalable. There are a lot of details to fill in over the course of the rest of the semester, but for now we are going to focus on getting data into and out of a database.
Intro to Databases
What is a database?
A database is an organized collection of structured information, or data, typically stored electronically in a computer system.
Databases provide a query language - a small, domain-specific language for interacting with the data. The query language is not like a typical programming language such as Python or C++; you cannot create large, complex programs with it. Instead, it is intended to allow for easy, efficient access to the data.
Why use a database?
Our data needs permanence and we want to be able to stop and start our applications without losing data.
We want multiple Python processes to be able to access the data at the same time, including Python processes that may be running on different computers.
Databases sometimes get classified into two broad categories: SQL databases (also called relational databases) and NoSQL databases.

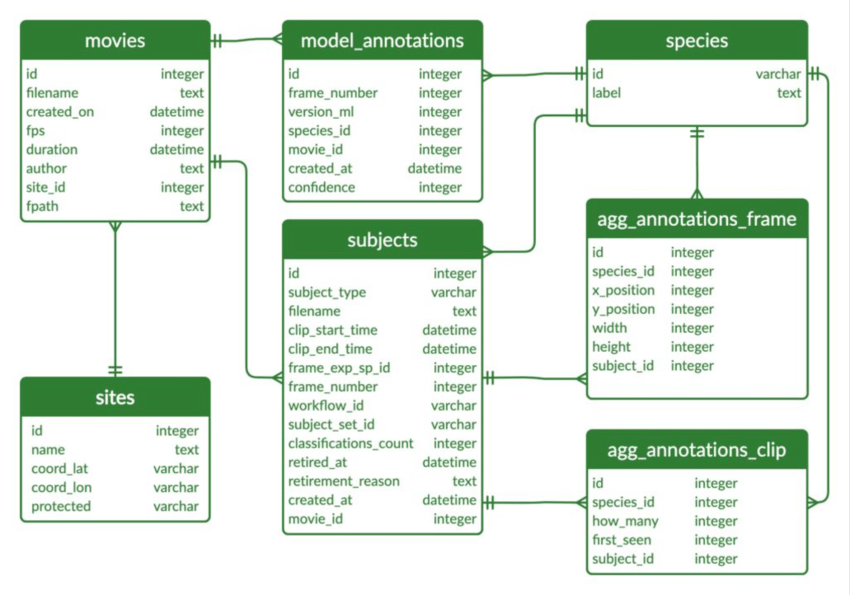

SQL Databases
Structured Query Language (SQL) is a language for managing structured or relational data, where certain objects in the dataset are related to other objects in a formally or mathematically precise way. SQL is the language used when working with a relational database. You will often see SQL database technologies referred to as Relational Database Management Systems (RDBMS).
The SQL language is governed by an ISO standard, and relational databases are among the most popular databases in use today. SQL was originally based on a strong, theoretical framework called the Relational Model (and related concepts). However, today’s SQL has departed significantly from that formal framework.
Popular commercial RBDMS include:
Oracle
Microsoft SQL Server
IBM Db2
Popular open-source RBDMS include:
MySQL
Postgres
Sqlite
NoSQL Databases
As the name implies, a NoSQL database is simply a database that does not use SQL. There are many different types of NoSQL databases, including:
Time series databases
Document stores
Graph databases
Simple key-value stores (like the one we will use in this class)
In some ways, it is easier to say what a NoSQL database isn’t than what it is; some of the key attributes include:
NoSQL databases do NOT use tables (data structured using rows and columns) connected through relations
NoSQL databases store data in “collections”, “logical databases”, or similar containers
NoSQL databases often allow for missing or different attributes on objects in the same collection
Objects in one collection do not relate or link to objects in another collection
For example, the objects themselves could be JSON objects without a pre-defined schema
SQL vs NoSQL
Comparing SQL and NoSQL is an apples to oranges comparison.
Both SQL and NoSQL databases have advantages and disadvantages.
The primary deciding factor should be the shape of the data and the requirements on the integrity of the data. In practice, many other considerations could come into play, such as what expertise the project team has.
Also consider how the data may change over time, and how important is the relationship between the different types of data being stored.
SQL databases “enforce” relationships between data types, including one-to-one, one-to-many, and many-to-many. When the integrity of the data is important, SQL databases are a good choice.
In many NoSQL databases, the relationship enforcement must be programmed into the application. This can be error-prone and can increase the development effort needed to build the application. On the other hand, this can allow the database to be used for use cases where relationship enforcement is not possible.
SQL databases historically cannot scale to the “largest” quantities of data because of the ACID (Atomicity, Consistency, Isolation, Durability) guarantees they make (though this is an active area of research).
NoSQL databases trade ACID guarantees for weaker properties (e.g., “eventual consistency”) and greater scalability. It would be difficult to scale a relational database to contain the HTML of all websites on the internet or even all tweets ever published.
ACID Properties
A - Atomicity: “All or Nothing” — the entire transaction succeeds or the whole thing is rolled back. Transferring money between bank accounts — either both debit & credit succeed, or neither happens.
C - Consistency: Data must always move the database from one valid state to another. A transaction can’t leave the database in an invalid state. After a money transfer, both account balances should reflect the right amounts — no negative balances unless the system allows overdrafts.
I - Isolation: Transactions should not interfere with each other, even if they happen at the same time. If two people try to buy the last ticket for a concert at the same time, only one should succeed — transactions shouldn’t “step on each other’s toes.”
D - Durability: Once a transaction is committed, it’s permanent, even if there’s a crash or power loss. After you confirm a hotel booking, that reservation is safely stored — even if the server crashes right after.
Quick Analogy
Imagine you’re ordering food online — the ACID properties make sure:
Atomicity: Your payment and order both succeed, or neither does (you aren’t charged without an order placed).
Consistency: The restaurant’s inventory reflects your order — if you order a burger, the burger count goes down by 1.
Isolation: If two people order the last burger at the same time, only one actually gets it.
Durability: Even if the system crashes, your order stays confirmed.
For the projects in this class, we are going to use Redis, a simple (NoSQL) “data structure” store. There are a few reasons for this choice:
We need a flexible data model, as the structure of the data we will store in the database will be changing significantly over the course of the semester.
We need a tool that is quick to learn and simple to use. This is not a databases course, and learning the SQL language would take significantly more time than we can afford.
In a Nutshell
When to use SQL
- Structured Data with Clear Relationships
If your data has a fixed schema (tables with columns and rows) and relationships between tables (foreign keys), SQL is great.
- Transactions are Critical
If you need strong consistency and ACID compliance (Atomicity, Consistency, Isolation, Durability), SQL databases like PostgreSQL or MySQL are the go-to.
- Data Integrity Matters a Lot
When you need constraints (like unique values, foreign key enforcement, or type checks) SQL databases shine.
- Analytics and Complex Queries
SQL is excellent when you need to join tables, filter, aggregate, or run complex queries across datasets.
- Standardized Reporting
If your business relies heavily on structured reporting and analysis, SQL’s mature querying (like GROUP BY, JOIN, etc.) fits well.
When to use NoSQL
- Flexible or Evolving Schema
If your data structure changes often (new fields, nested data, etc.), NoSQL (like MongoDB or DynamoDB) is more forgiving.
- Massive Scale with Simple Queries
If you have very large amounts of data and are optimizing for speed over complex querying, NoSQL (especially key-value or document stores) is often faster.
- High Throughput, Low Latency Needs
For systems like caching, user sessions, or event logging, NoSQL can handle quick reads/writes with ease.
- Unstructured or Semi-Structured Data
Documents, JSON blobs, logs, and sensor data are often a better fit for document or column-family stores than rigid tables.
- Horizontal Scaling
NoSQL databases are typically designed for easier horizontal scaling (sharding/partitioning across servers) compared to SQL.
- Big Data & Distributed Systems
If you’re building something like a recommendation engine, analytics pipeline, or IoT platform, NoSQL can shine.
Quick Rule of Thumb
If you need… * Strong consistency + relationships: SQL * High flexibility + scalability: NoSQL
Redis
Redis is a very popular NoSQL database and “data structure store” with lots of advanced features including:
Note
Before going any further, let’s play around with Redis a little bit in a browser:
https://redis.io/try-free/
Try the commands SET, GET, HSET, HGET, KEYS, HKEYS
Key-Value Store

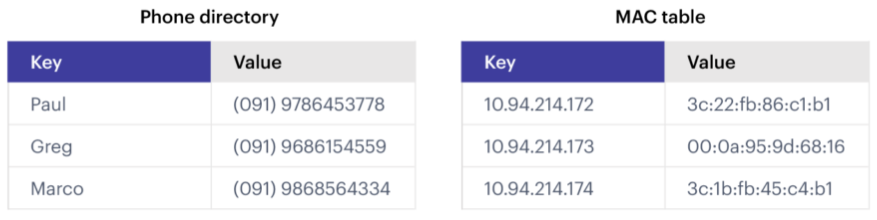

Redis provides key-value store functionality:
The items stored in a Redis database are structured as
key:valueobjects.The primary requirement is that the
keybe unique across the database.A single Redis server can support multiple databases, indexed by an integer.
The data itself can be stored as JSON.
Notes about Keys
Redis keys have the following properties/requirements:
Keys are often strings, but they can be any “binary sequence”.
Long keys can lead to performance issues.
A format such as
<object_type>:<object_id>is a good practice.
Notes on Values
Values are typed; some of the primary types include:
Binary-safe strings
Lists (sorted collections of strings)
Sets (unsorted, unique collections of strings)
Hashes (maps of fields with associated values; both field and value are type
string)
There is no native “JSON” type; to store JSON, one can use an encoding and store the data as a binary-safe string, or one can use a hash and convert the object into and out of JSON.
The basic string type is a “binary-safe” string, meaning it must include an encoding.
In Python terms, the string is stored and returned as type
bytes.By default, the string will be encoded with UTF-8, but we can specify the encoding when storing the string.
Since bytes are returned, it will be our responsibility to decode using the same encoding.
Hash Maps
Hashes provide another way of storing dictionary-like data in Redis
The values of the keys are type
string
Running Redis
To use Redis on your Jetstream VMs, we must have an instance of the Redis server running. We will use a containerized version of Redis that we each need to pull from Docker Hub:
# start the Redis server on the command line:
[mbs337-vm]$ docker run -d -p 6379:6379 redis:8
Unable to find image 'redis:8' locally
8: Pulling from library/redis
0c8d55a45c0d: Pull complete
bbed7540f434: Pull complete
35b667b631ff: Pull complete
a15985f29cdf: Pull complete
6397ab563848: Pull complete
4f4fb700ef54: Pull complete
4a43643650f6: Pull complete
Digest: sha256:7b6fb55d8b0adcd77269dc52b3cfffe5f59ca5d43dec3c90dbe18aacce7942e1
Status: Downloaded newer image for redis:8
33827c602568a8d09a1d755dc93035dd42e7474a11213eac66aa8fb0ef239c2e
The -d flag detaches your terminal from the running container - i.e. it
runs the container in the background. The -p flag maps a port on the Jetstream
VM (6379, in the above case) to a port inside the container (again 6379, in the
above case). In the above example, the Redis database was set up to use the
default port inside the container (6379), and we can access that through our
specified port on Jetstream (6379). This explicit mapping is convenient if you
have multiple services running on the same VM and you want to avoid port
collisions.
Check to see that things are up and running with:
[mbs337-vm]$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
33827c602568 redis:8 "docker-entrypoint.s…" 11 seconds ago Up 9 seconds 0.0.0.0:6379->6379/tcp, [::]:6379->6379/tcp gallant_fermi
The list should have a container with the name you gave it, an UP status,
and the port mapping that you specified.
If the above is not found in the list of running containers, try to debug with the following:
[mbs337-vm]$ docker logs "your-container-name"
-or-
[mbs337-vm]$ docker logs "your-container-ID"
[mbs337-vm]$ docker logs 33827c602568
Starting Redis Server
1:C 21 Feb 2026 18:04:29.653 * oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
1:C 21 Feb 2026 18:04:29.653 * Redis version=8.6.0, bits=64, commit=00000000, modified=1, pid=1, just started
1:C 21 Feb 2026 18:04:29.653 * Configuration loaded
1:M 21 Feb 2026 18:04:29.653 * monotonic clock: POSIX clock_gettime
1:M 21 Feb 2026 18:04:29.654 * Running mode=standalone, port=6379.
...
1:M 21 Feb 2026 18:04:29.661 * Server initialized
1:M 21 Feb 2026 18:04:29.661 * Ready to accept connections tcp
The Redis server is up and available on port 6379. Although we could use the Redis CLI to interact with the server directly, in this class we will focus on the Redis Python library so we can interact with the server from our Python scripts.
Warning
Pause for a minute to think about why we are running redis:8. In the terminal output, it
looks like the actual version of Redis is version=8.6.0. What do you need to know about
semantic versioning in order to future-proof your code?
To interact with this Redis server, we need to install the Redis Python library:
[mbs337-vm]$ cd $HOME/mbs-337
[mbs337-vm]$ source .venv/bin/activate
(.venv) [mbs337-vm]$ pip3 install redis
(.venv) [mbs337-vm]$ pip3 list
Package Version
----------------- -------
annotated-types 0.7.0
biopython 1.86
iniconfig 2.3.0
numpy 2.4.1
packaging 26.0
pip 24.0
pluggy 1.6.0
pydantic 2.12.5
pydantic_core 2.41.5
Pygments 2.19.2
pytest 9.0.2
redis 7.2.0
typing_extensions 4.15.0
typing-inspection 0.4.2
Then open up an interactive Python interpreter to connect to the server:
[mbs337-vm]$ python3
Python 3.12.3 (main, Jan 22 2026, 20:57:42) [GCC 13.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>
>>> import redis
>>>
>>> rd=redis.Redis(host='127.0.0.1', port=6379, db=<some integer>)
>>>
>>> type(rd)
<class 'redis.client.Redis'>
You’ve just created a Python client object to the Redis server called rd. This
object has methods for adding, modifying, deleting, and analyzing data in
the database instance, among other things.
Some quick notes:
We are using the IP of the gateway (
127.0.0.1) on our localhost and the default Redis port (6379).Redis organizes collections into “databases” identified by an integer index. Here, we are specifying
db=<some integer>(we chose 0); if that database does not exist it will be created for us.
Working with Redis
We can create new entries in the database using the .set() method. Remember,
entries in a Redis database take the form of a key:value pair. For example:
>>> rd.set('my_key', 'my_value')
True
This operation saved a key in the Redis server (db=0) called my_key and
with value my_value. Note the method returned True, indicating that the
request was successful.
We can retrieve it using the .get() method:
>>> rd.get('my_key')
b'my_value'
Note that b'my_value' was returned; in particular, Redis returned binary
data (i.e., type bytes). The string was encoded for us (in this case, using
Unicode). We could have been explicit and set the encoding ourselves. The
bytes class has a .decode() method that can convert this back to a
normal string, e.g.:
>>> rd.get('my_key')
b'my_value'
>>> type(rd.get('my_key'))
<class 'bytes'>
>>>
>>> rd.get('my_key').decode('utf-8')
'my_value'
>>> type( rd.get('my_key').decode('utf-8') )
<class 'str'>
Redis and JSON
A lot of the information we exchange comes in JSON or Python dictionary format.
To store pure JSON as a binary-safe string value in a Redis database, we
need to be sure to dump it as a string (json.dumps()):
>>> import json
>>> d = {'a': 1, 'b': 2, 'c': 3}
>>> rd.set('k1', json.dumps(d))
True
Retrieve the data again and get it back into JSON / Python dictionary format
using the json.loads() method:
>>> rd.get('k1')
b'{"a": 1, "b": 2, "c": 3}'
>>> type(rd.get('k1'))
<class 'bytes'>
>>>
>>> json.loads(rd.get('k1'))
{'a': 1, 'b': 2, 'c': 3}
>>> type(json.loads(rd.get('k1')))
<class 'dict'>
Note
In some versions of Python, you may need to specify the encoding as we did earlier, e.g.:
>>> json.loads(rd.get('k1').decode('utf-8'))
{'a': 1, 'b': 2, 'c': 3}
Hashes
Hashes provide another way of storing dictionary-like data in Redis.
Hashes are useful when different fields are encoded in different ways; for example, a mix of binary and unicode data.
Each field in a hash can be treated with a separate decoding scheme, or not decoded at all.
Use
hset()to set a single field value in a hash or to set multiple fields at once.Use
hget()to get a single field within a hash or to get all of the fields.
# set multiple fields on a hash
>>> rd.hset('k2', mapping={'name': 'Erik', 'email': 'eferlanti@tacc.utexas.edu'})
2
# set a single field on a hash
>>> rd.hset('k2', 'type', 'instructor')
1
# get one field
>>> rd.hget('k2', 'name')
b'Erik'
# get all the fields in the hash
>>> rd.hgetall('k2')
{b'name': b'Erik', b'email': b'eferlanti@tacc.utexas.edu', b'type': b'instructor'}
Tip
You can use rd.keys() to return all keys from a database, and
rd.hkeys(key) to return the list of keys within hash ‘key’, e.g.:
>>> rd.keys()
[b'k2', b'my_key', b'k1']
>>> rd.hkeys('k2')
[b'name', b'email', b'type']
EXERCISE 1
Save the hemoglobin structure 4HHB per-chain residue statistics data (i.e., the 4HHB_summary.json output
file from Homework 4/5) into Redis. Each chain summary data point should be stored as a single Redis object.
Think about what data type you want to use in Redis for storing the data.
If needed, you can download the JSON file with the following command:
$ wget https://raw.githubusercontent.com/TACC/mbs-337-sp26/refs/heads/main/docs/unit06/scripts/4HHB_summary.json
{
"chains": [
{
"chain_id": "A",
"total_residues": 198,
"standard_residues": 141,
"hetero_residue_count": 57
},
{
"chain_id": "B",
"total_residues": 205,
"standard_residues": 146,
"hetero_residue_count": 59
},
{
"chain_id": "C",
"total_residues": 201,
"standard_residues": 141,
"hetero_residue_count": 60
},
{
"chain_id": "D",
"total_residues": 197,
"standard_residues": 146,
"hetero_residue_count": 51
}
]
}
[mbs337-vm]$ python3
Python 3.12.3 (main, Jan 22 2026, 20:57:42) [GCC 13.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import json
>>> import redis
>>> rd = redis.Redis(host='127.0.0.1', port=6379, db=1)
>>> data = json.load(open('4HHB_summary.json'))
>>> print(data)
{'chains': [{'chain_id': 'A', 'total_residues': 198, 'standard_residues': 141, 'hetero_residue_count': 57}, {'chain_id': 'B', 'total_residues': 205, 'standard_residues': 146, 'hetero_residue_count': 59}, {'chain_id': 'C', 'total_residues': 201, 'standard_residues': 141, 'hetero_residue_count': 60}, {'chain_id': 'D', 'total_residues': 197, 'standard_residues': 146, 'hetero_residue_count': 51}]}
>>> for chain in data['chains']:
... rd.set(chain['chain_id'], json.dumps(chain))
...
True
True
True
True
EXERCISE 2
Check that you stored the data correctly:
Check the total number of keys in your Redis database against the total number of objects in the JSON file.
Read all of the chain summary objects out of Redis and check that each object has the correct fields.
>>> rd.keys()
[b'D', b'B', b'C', b'A']
>>> for key in rd.keys():
... print(json.loads(rd.get(key)))
...
{'chain_id': 'D', 'total_residues': 197, 'standard_residues': 146, 'hetero_residue_count': 51}
{'chain_id': 'B', 'total_residues': 205, 'standard_residues': 146, 'hetero_residue_count': 59}
{'chain_id': 'C', 'total_residues': 201, 'standard_residues': 141, 'hetero_residue_count': 60}
{'chain_id': 'A', 'total_residues': 198, 'standard_residues': 141, 'hetero_residue_count': 57}
EXERCISE 3
Exit the Python interactive interpreter or kill the Python script that is running your Redis client. In a new Python session, re-establish the Redis client. What is in the database?
Now kill the Redis container. Start the Redis container again. What is in the database?
[mbs337-vm]$ python3
Python 3.12.3 (main, Jan 22 2026, 20:57:42) [GCC 13.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import json
>>> import redis
>>> rd = redis.Redis(host='127.0.0.1', port=6379, db=1)
>>> rd.keys()
[b'D', b'B', b'C', b'A']
>>> for key in rd.keys():
... print(json.loads(rd.get(key)))
...
{'chain_id': 'D', 'total_residues': 197, 'standard_residues': 146, 'hetero_residue_count': 51}
{'chain_id': 'B', 'total_residues': 205, 'standard_residues': 146, 'hetero_residue_count': 59}
{'chain_id': 'C', 'total_residues': 201, 'standard_residues': 141, 'hetero_residue_count': 60}
{'chain_id': 'A', 'total_residues': 198, 'standard_residues': 141, 'hetero_residue_count': 57}
To stop the Redis container, you can use the following command:
[mbs337-vm]$ docker stop "your-container-name" -or- [mbs337-vm]$ docker stop "your-container-ID" [mbs337-vm]$ docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 33827c602568 redis:8 "docker-entrypoint.s…" 2 hours ago Up 2 hours 0.0.0.0:6379->6379/tcp, [::]:6379->6379/tcp gallant_fermi [mbs337-vm]$ docker stop 33827c602568 33827c602568 [mbs337-vm]$ docker ps -a CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
[mbs337-vm]$ docker run --rm -d -p 6379:6379 redis:8
a3b7e2370b4b4d989432eaf8354fae27b5fde9f171fc410c8e28b72a960b8a48
[mbs337-vm]$ python3
Python 3.12.3 (main, Jan 22 2026, 20:57:42) [GCC 13.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import json
>>> import redis
>>> rd = redis.Redis(host='127.0.0.1', port=6379, db=0)
>>> rd.keys()
[]
[mbs337-vm]$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
a3b7e2370b4b redis:8 "docker-entrypoint.s…" 3 minutes ago Up 3 minutes 0.0.0.0:6379->6379/tcp, [::]:6379->6379/tcp pensive_turing
[mbs337-vm]$ docker stop a3b7e2370b4b
a3b7e2370b4b
[mbs337-vm]$ docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
After the last exercise, you should have seen that the data in the Redis database persisted across Python sessions but not across container sessions. This is because Redis is fundamentally an in-memory database for performance reasons. When the container is stopped, the data in memory is lost. To persist data across container sessions, you would need to configure Redis to save data to disk and use a volume to store the data outside of the container.
[mbs337-vm]$ docker volume create redis-data
redis-data
[mbs337-vm]$ docker volume ls
DRIVER VOLUME NAME
local redis-data
[mbs337-vm]$ docker run --rm --name redis -d -p 6379:6379 -v redis-data:/data redis:8 redis-server --appendonly yes --appendfsync everysec
8860df3cc4dda7ae8a53f2aed81ff915a2743a7ac94720fbeb4dcc134a181093
[mbs337-vm]$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
8860df3cc4dd redis:8 "docker-entrypoint.s…" 27 seconds ago Up 27 seconds 0.0.0.0:6379->6379/tcp, [::]:6379->6379/tcp redis
[mbs337-vm]$ docker exec redis redis-cli SET mykey "myvalue"
OK
[mbs337-vm]$ docker restart redis
redis
[mbs337-vm]$ docker exec redis redis-cli GET mykey
myvalue
Additional Resources
Many of the materials in this module were adapted from COE 332: Software Engineering & Design
